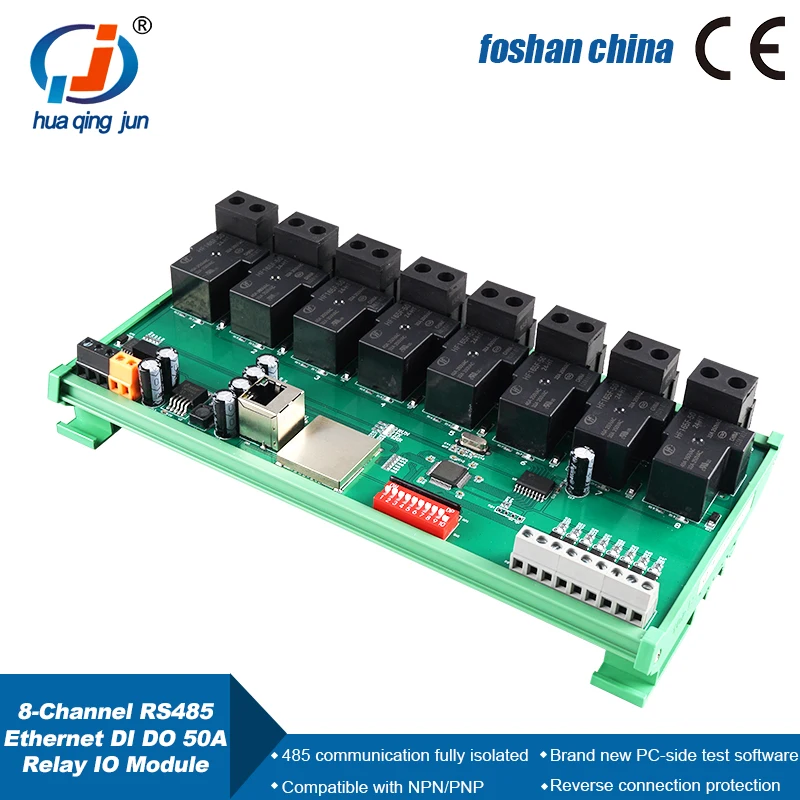

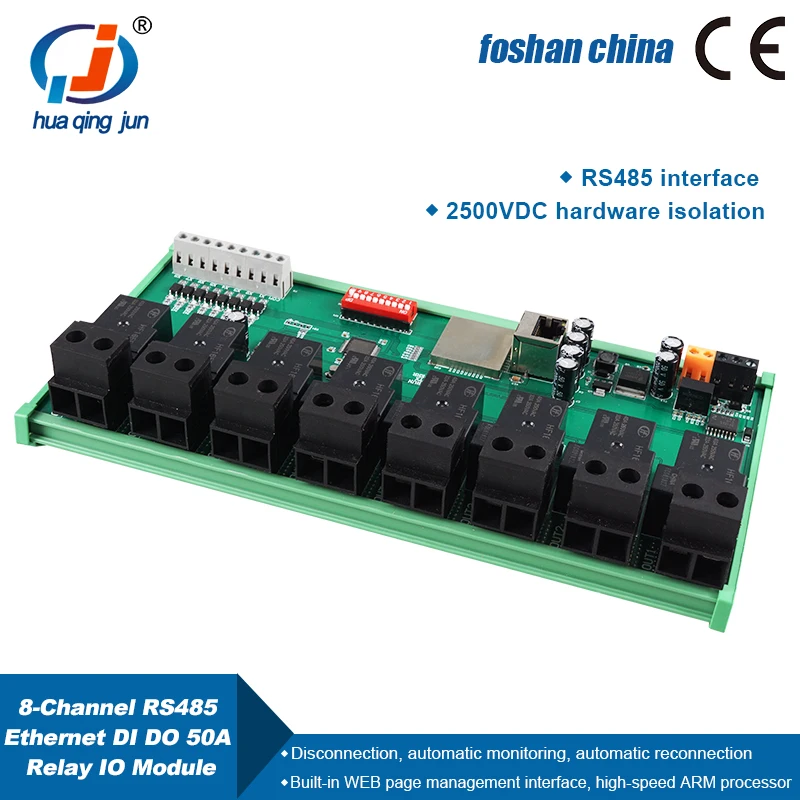

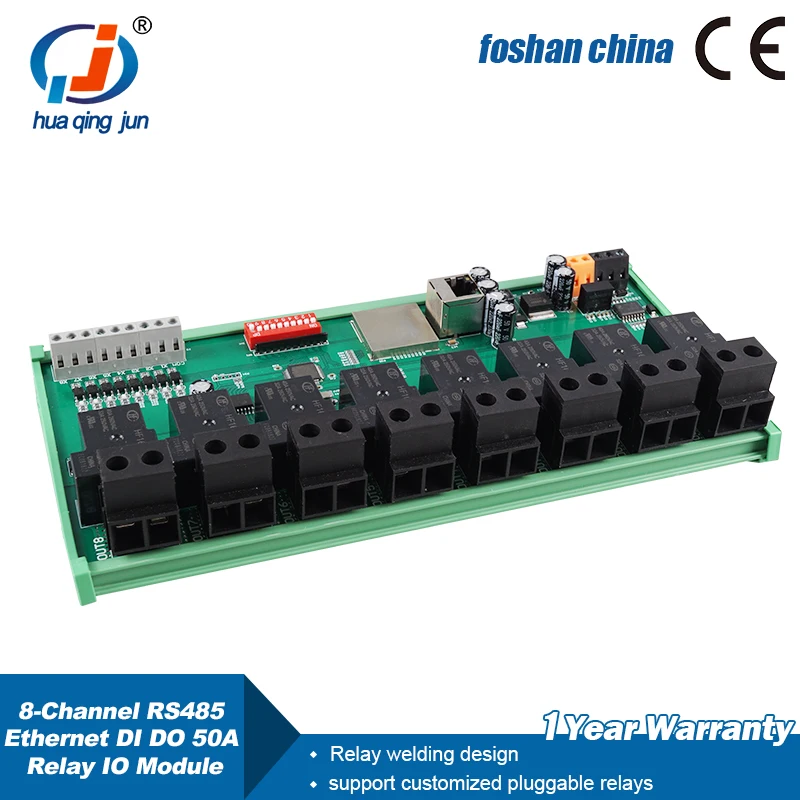

Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation

Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation

Inquiry
  • Overview
  • Inquiry
  • Related Products
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Huaqingjun 8DI 8DO Relay Outputs 50A 24V RJ45 LAN RS485 Ethernet IO Module for Greenhouse Automation
Product Description
Input insulation
sustainable voltage ±1500V
Input indicator
Attached
Requirements on power supply
8DI8DO board： >1.0A

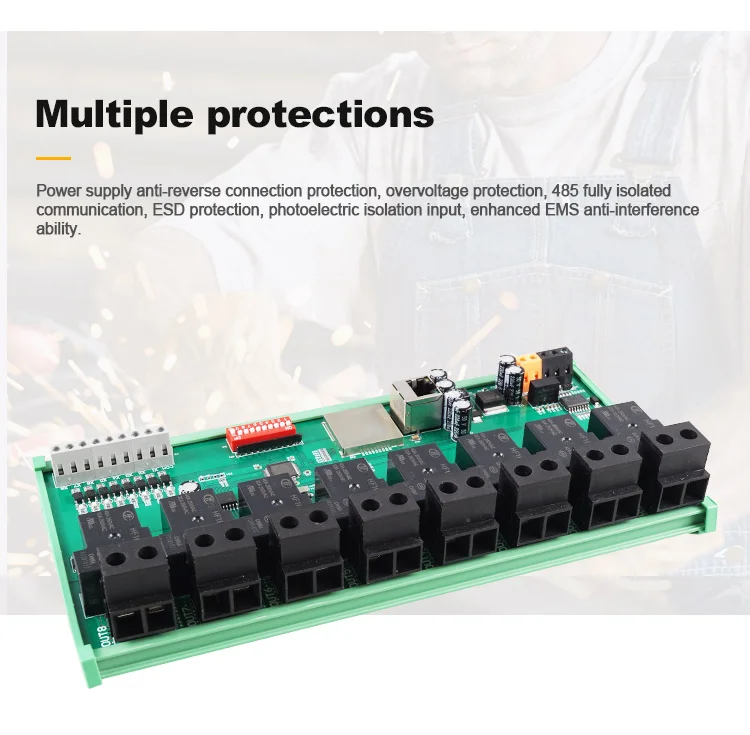

Reversal connection protection
compatible
Transmission distance
≥1000M(Double twisted cable)

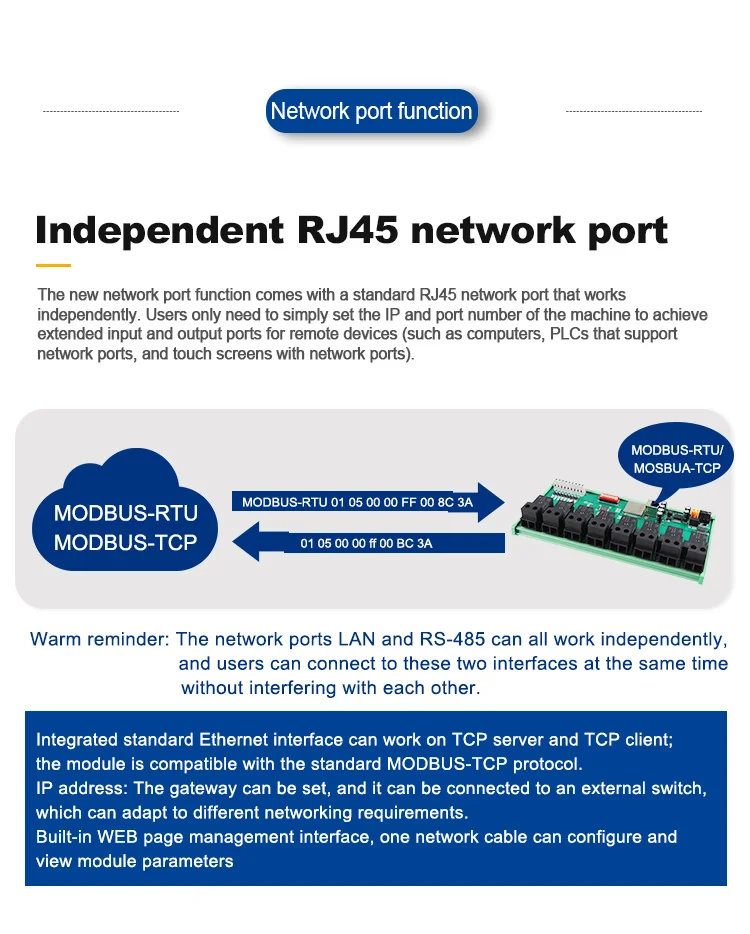

Maximum transmission distance of LAN port
>100 meters (category six network cable)
RS485 Baud rate
1200/2400/4800/9600/19200/38400/57600/115200BPS
Data format
1 starting point 8 data points parity checking, 1 or 2 stopping points
Maximum Voltage
24VDC(18~30V) / 12VDC(10~15V)
Load
Resistive Load 50A 250 VAC,  Inductive Load 40A 250VAC
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-56
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-57
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-58
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-59
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-60
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-61
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-62
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-63
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-64
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-65
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-66
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-67
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-68
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-69
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-70
Company Profile
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-71
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-72
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-73
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-74
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-75
product huaqingjun 8di 8do relay outputs 50a 24v rj45 lan rs485 ethernet io module for greenhouse automation-76
Packing & Delivery
Packaging Details: standard paper box

Lead Time: 3-5 days after payment for sample order.

10-25 days after payment for big order.
FAQ
Q1. What advantages do you have?

A: We have independent products, good quality products, excellent technical support and service.

Q2. How long is the quality guarantee?

A: Product quality warranty is one year.

Q3. What is the delivery time?

A: Normally, it is about 3-7 days after payment. It needs to be negotiated to special requirement orders.

Q4. How about the quality of your product?

A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the
necessary accessories and power adapter plug standard.

Q5. How do you keeping our long-term business and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

3. We could customize modules according to customer's requirements.
