12-Channel AC amplifier board, China 12-Channel AC amplifier board Manufacturers, Suppliers, Factory

Place of Origin:	China
Brand Name:	Huaqingjun
Model Number:
Certification:	CE,FCC,ISO
Minimum Order Quantity:	1
Price:
Packaging Details:	Carton
Delivery Time:	3-5days if it stocks, large quantity negotiate
Payment Terms:	T/T
Supply Ability:	30000pcs each month

Description:

Our plc expansion board is divide into two type .One is AC amplifer ,the other is DC amplifier. If the controlled device is DC ,please choose the DC MOS tube amplifier board or relay module; If the controlled device is AC, AC thyristor amplifying board or relay module is optional.

This series is used to enhance thePLC output load capacity.Due tothe wiring method and its own volume limitationsof PLC,itcan not achieve large currentandhigh voltage output, so the need for additional expansion board to expand the output current and voltage, improve the load driving capacity.

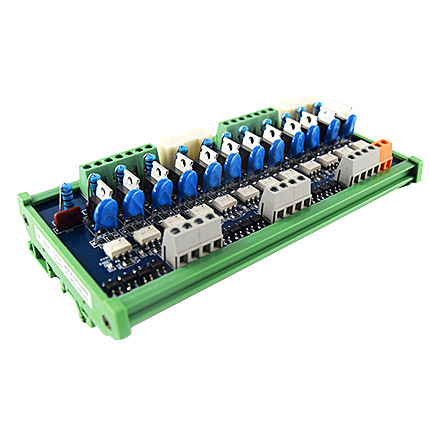

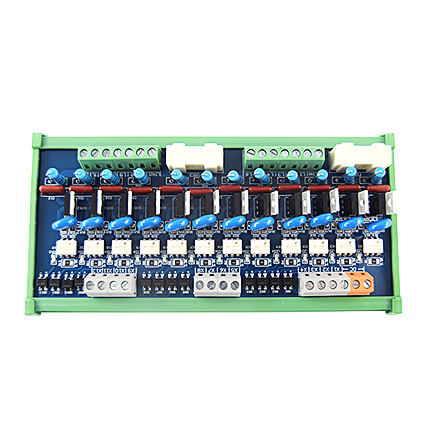

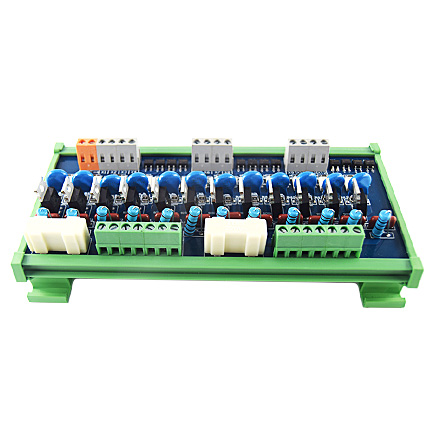

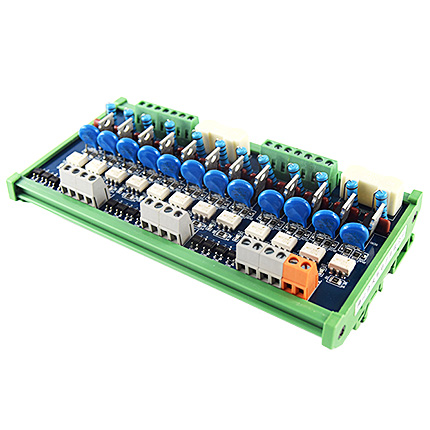

Name	PLC AC Amplifier Board
Input signal	compatible with NPN(input 0V signal is valid) and PNP(input 24V signal is valid)
Maximum load current	resistive load ≤2A instant 5A,Inductive load ≤1.5A instant 5A
Input signal voltage	24V(default 24V, non-standard voltage control range between 3V-24V should be indicated)
Rated output voltage	AC24-250V
Input response time	≤20ms
Operating frequency	50HZ-60HZ
Service life	>10 million times (drive tube 1 million hours)
Connection mode	5.08 terminal (7.02 terminal block and terminal block are optional)
Minimum input drive current	≥15ma
Loop insulation	optical coupling isolation
Short circuit protection (fuse)	10A
Non-repetitive surge peak on-state current	8A
Mounting method	Standard guide rail (can be mounted on NS35/7.5 or NS32 guide rail).
Action indicator	When you input ON, the input indicator is green on
Name	PLC Expansion Board Self-recovery DC Module
Control part	Imported IR high power
Input minimum drive current	≥5mA
Input signal	compatible with NPN(input 0V signal is valid) and PNP(input 24V signal is valid)
Load current	resistive load ≤2.5A instant 10A,Inductive load ≤2A instant 10A
Instant inrush current	10A
Short circuit protection	3A
Mechanical life	100 million times
Input response time	≥0.3ms
Connecttion method	5.08 Terminal (plug-in terminal block)

Applications:

1.Street lights control,water spray control,parking system, household appliances control feeding farm, machinery, hydraulic valvesand other industry occasions.

2. Commonly used to drive solenoid valves, contactors, small motors, hydraulic valves, etc

Competitive Advantage:

1.With a common point compact structure, easy to connect.

2. The PLC amplifier board is added to the photoelectric isolation or electromagnetic isolation, short circuit protection, anti-surge protection circuitwhich can protect the output equipment effectively.
