Maximum load current (Each channel) |
Resistive load≤8A (Instant 10A, if you need to be bigger, can custom-made) Inductive load≤5A (Instant 10A, if you need to be bigger, can custom-made) |
Input voltage (coil voltage) |
24V (Optional 1, need to be noted) |
Maximum output operating voltage |
AC250V |
Connection method |
5.08 Terminal (Optional 7.02 terminal block, terminal seat) |

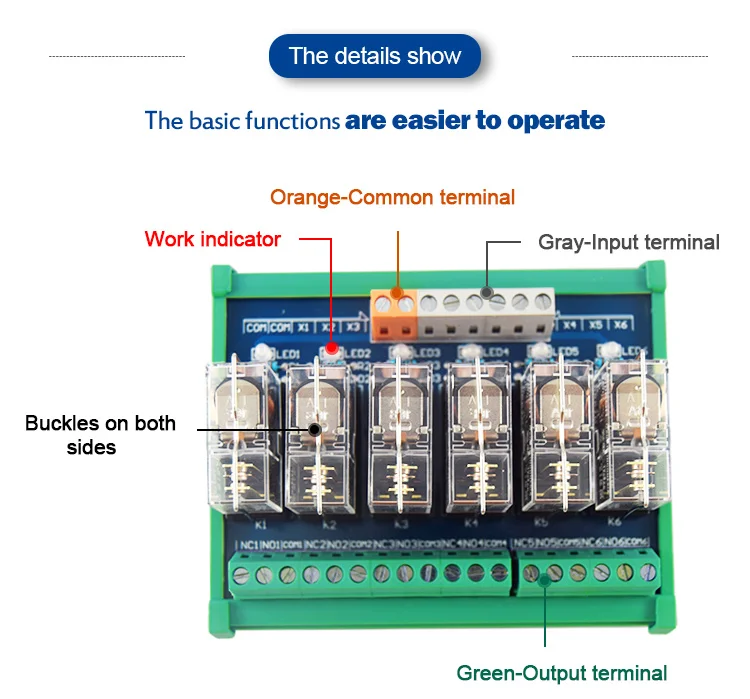

Action indicator |

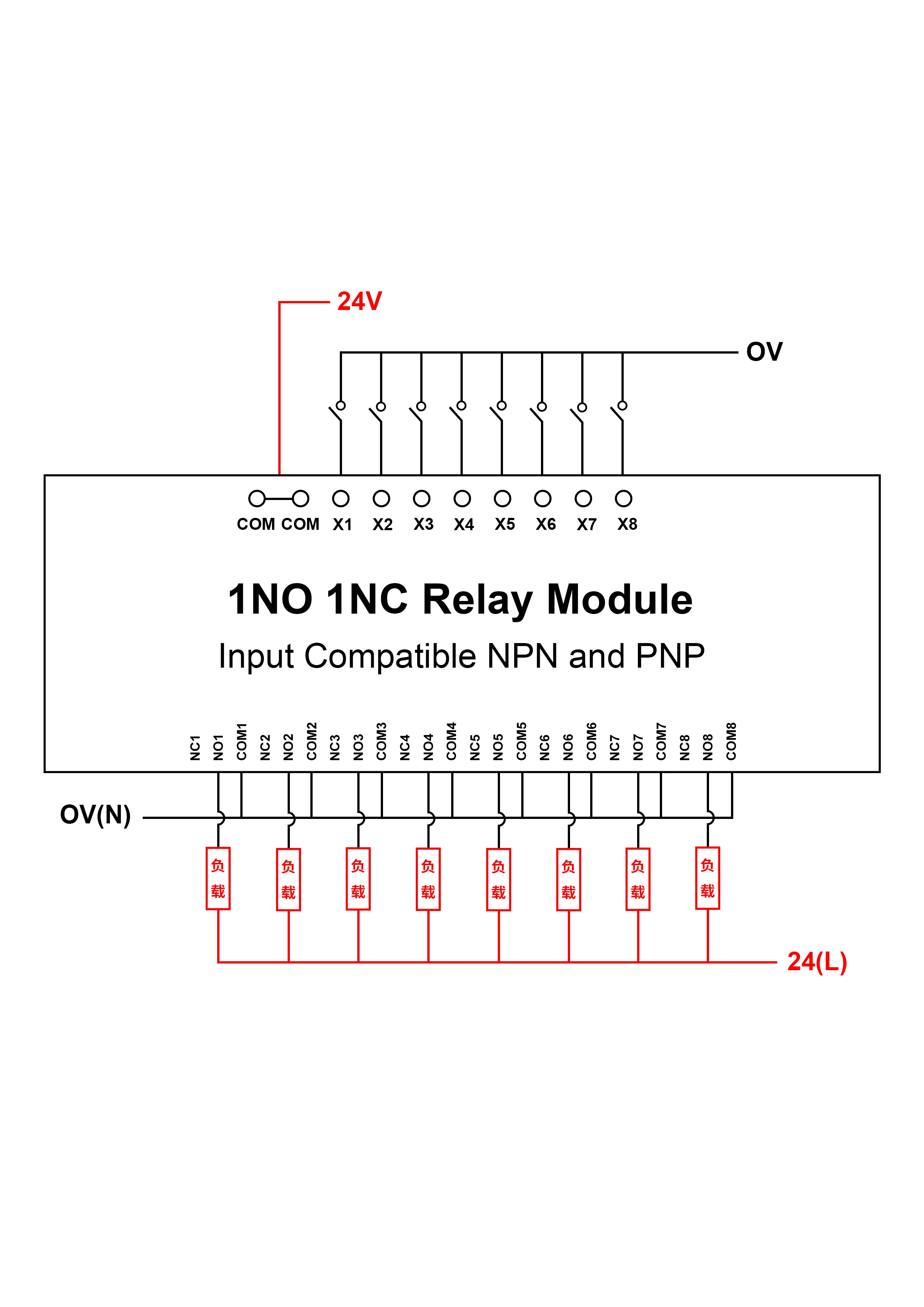

When Input "COM" to 0V "X" to 24V the LED is red ("COM" to 24V LED light is blue) |
Input and output points (such as 8 channel) |
Input 8 points (channel), output 8 points (channel) |
Rated surge voltage |
4KV |
Protection loop / short circuit protection |
Can add reverse diode / fuse or self-recovery |
Packaging Details: standard paper box
Port: Guangzhou
Delivery Time: 3-5 days after payment for sample order
10-25 days after payment for big order
Q1. What advantages do you have?
A: We have independent products, good quality products, excellent technical support and service.
Q2. How long is the quality guarantee?
A: Product quality warranty is one year.
Q3. What is the delivery time?
A: Normally, it is about 3-5 days after payment. It needs to be negotiated to special requirement orders.
Q4. How about the quality of your product?
A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the necessary accessories and power adapter plug standard.
Q5. How do you keeping our long-term business and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
