PLC application |

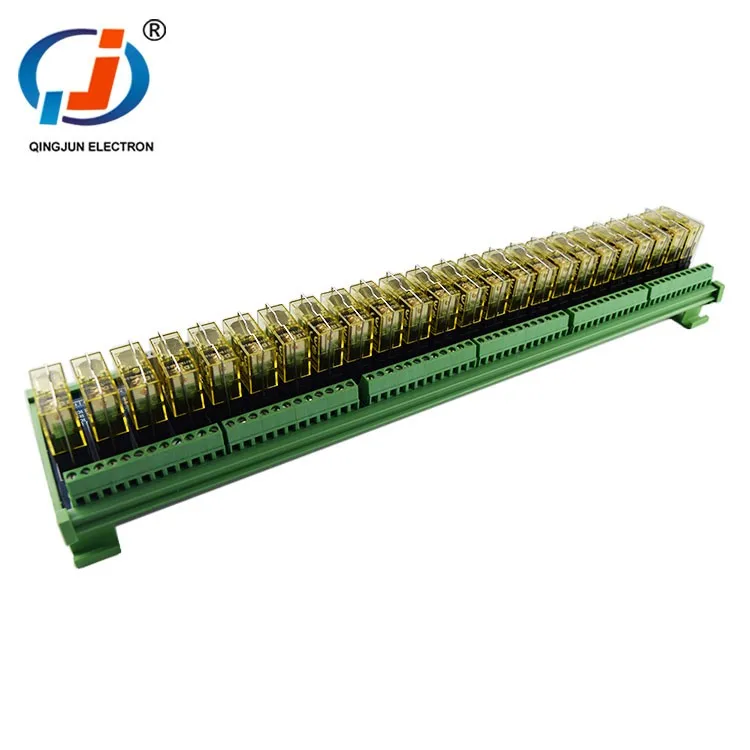

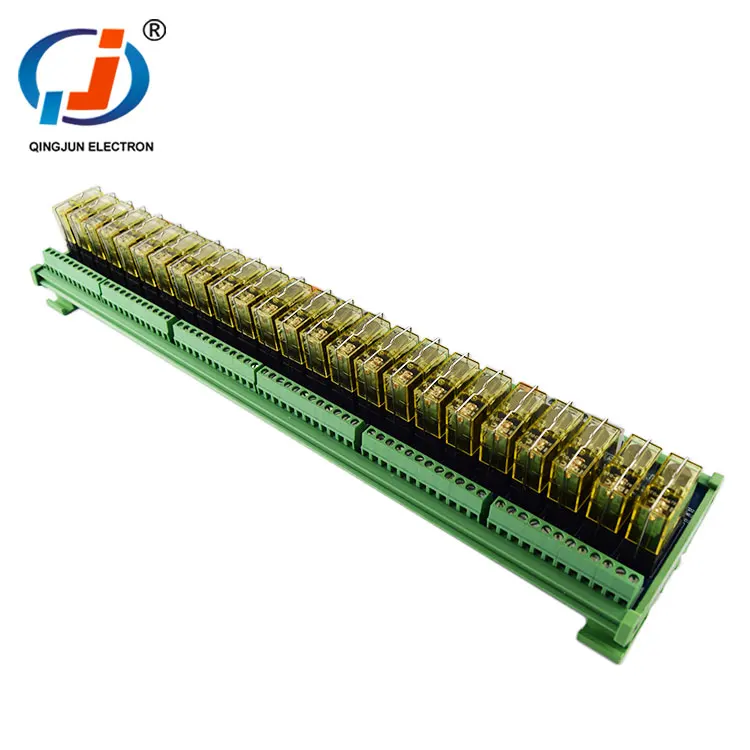

Relay Module IDC 40-pin is for Omron CJ1W-OD231 PLC, customers need to note if it is for Omron CJ1W-OD233 PLC. |
Connection method |
5.08 Terminal (Optional 7.02 terminal block, terminal seat) |
Input minimum drive current |
≥30mA |
Action indicator |
When Input "COM" to 0V "X" to 24V the LED is red ("COM" to 24V LED light is blue) |
Input and output points (such as 8 channel) |
Input 8 points (channel), output 8 points (channel) |
Protection loop / short circuit protection |
Can add reverse diode / fuse or self-recovery |
Installation method |

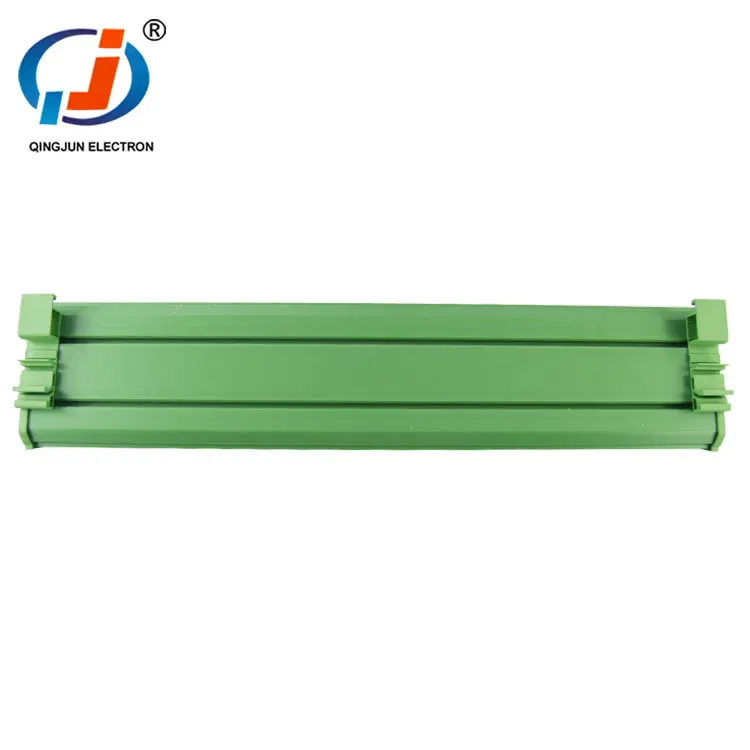

Standard rail (Can be mounted on NS35/7.5 or NS32 guides) |
Advantages: directly replace the traditional intermediate relay, using plug-in relay, the cost is reduced by 30% Relay module reduces intermediate wiring links, improves product performance, and reduces complexity by 40% The card slot guide is installed, which is more convenient and time-saving after sale, and the maintenance is simpler. Compatible: Omron, Tyco, IDEC, Fujitsu, Hongfa and other relays. Applicable environment: electromagnetic isolation, action about (2 million times) compatible with NPN and PNP. The low voltage controls the high voltage and the small current expands the carrying capacity. |
Packaging Details: standard paper box
Port: Guangzhou
Delivery Time: 3-5 days after payment for sample order
10-25 days after payment for big order
Q1. What advantages do you have?
A: We have independent products, good quality products, excellent technical support and service.
Q2. How long is the quality guarantee?
A: Product quality warranty is one year.
Q3. What is the delivery time?
A: Normally, it is about 3-5 days after payment. It needs to be negotiated to special requirement orders.
Q4. How about the quality of your product?
A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing, the necessary accessories and power adapter plug standard.
Q5. How do you keeping our long-term business and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
