| Place of Origin: | China |
| Brand Name: | Huaqingjun |
| Model Number: | QJ-16RG-O2Z-24V |
| Certification: | CE,FCC,ISO |
| Minimum Order Quantity: | 1 |
| Price: | |
| Packaging Details: | Carton |
| Delivery Time: | 3-5days if it stocks, large quantity negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs each month |

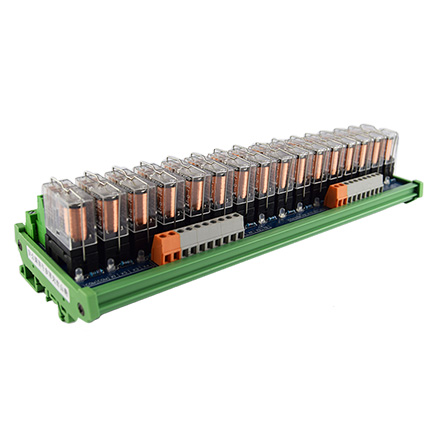

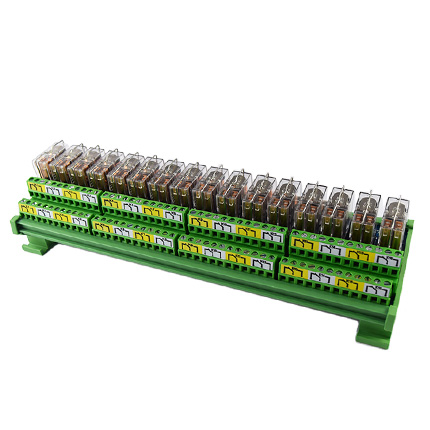

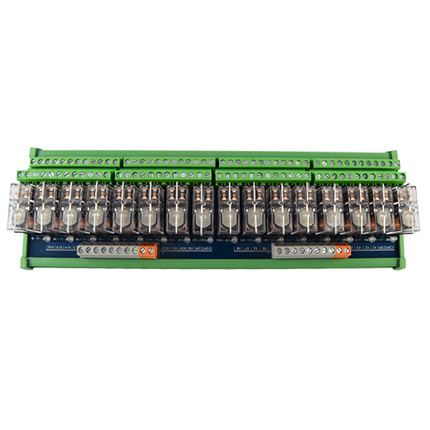

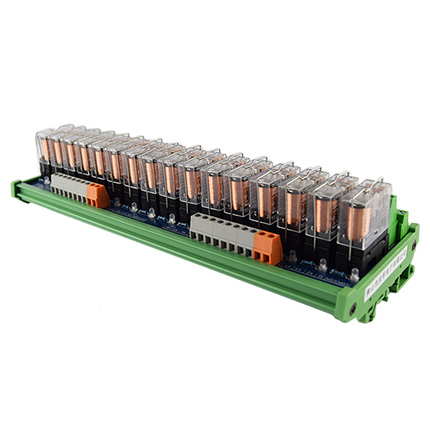

Description:
The relay is actually a switch contact.It can connect to AC DC load. There are different brands of relay such as Omron,IDEC,Panasonic.Tyco,Hongfa etc. All of our relay is origin and famous. The channel of relay is different.Vary from 2/4/6/8/10/12/16/20/24/26/32/36 channels. According to the contact way, we have 1NO 1NC and 2NO 2NC. The input signal of relay module is compatible with PNP and NPN.We adopt Electromagnetic isolation function, good anti-interference performance.Prevent PLC from high voltage impact interference caused by error action.
| Product name | Omron relay single module |
| Input signal | Compatible with NPN (input 0V signal is valid) and PNP (input 24V signal is valid) |
| Installation mode | Standard rail mounting (can be mounted on NS35/7.5 or NS32 guide) |
| Action light | Input "COM" to 0V "X" to 24V LED red light;(When "COM" is connected to 24V, the LED lights up blue) |
| Input-output number | (such as 8 channels) Input 8 points (channels), output 8 points (channels) |
| Contact way | 1NO1NC |
| Rated load | Resistive load:10A 250VAC 10A30VDC inductive load:7.5A 250VAC 5A30VDC |
| Voltage | 12V/24V |
| Product name | Omron relay dual module |
| Input signal | Compatible with NPN (input 0V signal is valid) and PNP (input 24V signal is valid) |
| Installation mode | Standard rail mounting (can be mounted on NS35/7.5 or NS32 guide) |
| Action light | Input "COM" to 0V "X" to 24V LED red light;(When "COM" is connected to 24V, the LED lights up blue) |
| Input-output number | (such as 8 channels) Input 8 points (channels), output 8 points (channels) |
| Contact way | 2NO2NC |
| Rated load | Resistive load:5A 250VAC 5A30VDC inductive load:2A 250VAC 3A30VDC |
| Voltage | 12V/24V |
Applications:
Street lights control,water spray control,parking system,Household appliances control feeding farm, machinery, hydraulic valvesand other industry occasions.
Competitive Advantage:
1.All of our relay adopt the famous brand. It is high quality.
2.Pluggable relay, it is easy to replace if it is broken.
3.Replace theintermediate relay, save installation time.
4.Stable and reliable.
