| Place of Origin: | China |
| Brand Name: | Huaqingjun |
| Model Number: | QJ-24T-2AI2AO-485 |
| Certification: | CE,FCC,ISO |
| Minimum Order Quantity: | 1PCS |
| Price: | |
| Packaging Details: | Carton |
| Delivery Time: | 3-5days if stock,15days if production |
| Payment Terms: | T/T |
| Supply Ability: | 30000 pcs each month |
Brief Introduction of PLC
PLC is Programmable Logic Controller.Typical PLCs have a wide range of I/O modules available to accommodate all kinds of sensors and output devices.These modules can interpret the signal and command the load to Run. The PLC is devided into relay output and transistor output include many optional function 485 modbus communication, analog input, analog output, high-speed pulse output, the latest model and WIFI.
Description:
Firstly, according to logic, plc can be divided into ladder diagram and simple version, according to the output type, plc can be divided into relay output and transistor output.According to the input channel ,it can divided into 8/12/16/32 channels.
Secondly, in order to adapt to different scenarios, plc has many optional functionslike:485 modbus communication, analog input, analog output, high-speed pulse output, and, in the latest model, WIFI.
With 485 Modbus rtu, it can expand the switching input and output or connect to the hmi.
With analog , it can controlcontrol a variety of analog equipment.
With High-speed pulse output ,it is mostly used to control stepper motors or servo motors, up to two stepper motors or servo motors can be controlled.With wifi, it can program by phone app or computer.
| Item | Parameters | |

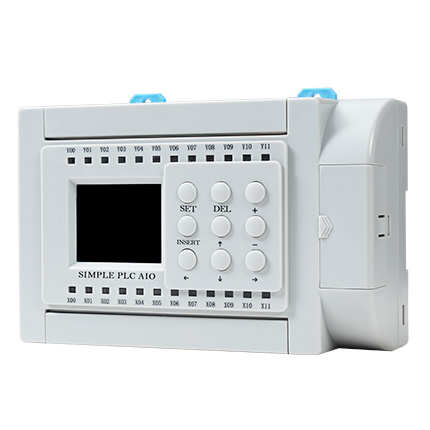

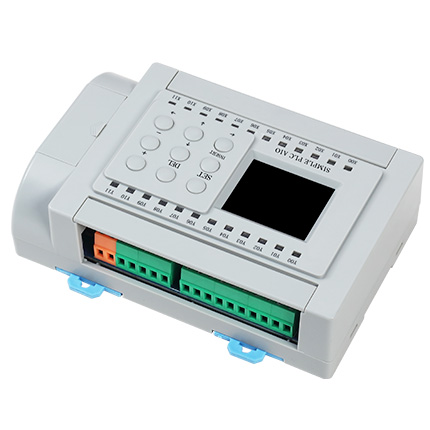

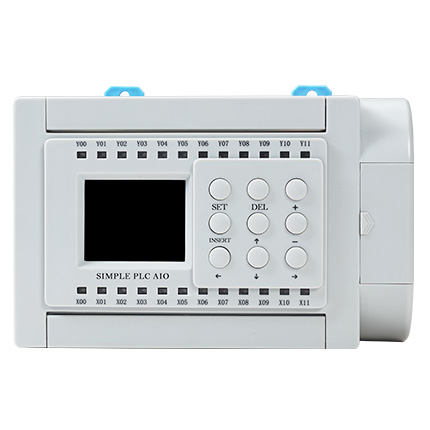

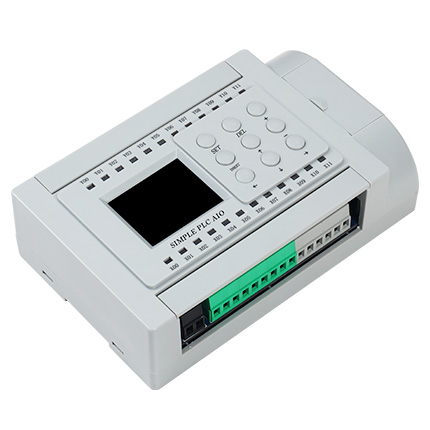

| Product name | Simple PLC All-In-One Programmable Time Relay | |
| Output type | Relay type | Transistor type |
| Power supply | 10W (<300mA/ DC24V)Reversal connection proofInput voltage is not greater than 28V | 6W (<200mA/ DC12-24V)Reversal connection proofInput voltage is not greater than 33V |
| Output format | 8/12/16/32 relays(constant open) | 8/12/16/32 transistors(Open-drain output) |
| Output load | 5A/250VAC、5A/30VDC | 2A/12-24VDC |
| Contactor lifetime | The life span of electric parts and mechanical parts is 100,000 times and 3,000,000 times | Over one hundred million times |
| Input points | 8 / 12 / 16 /32 points | |
| Input signal | >2mA /DC12-24V compatible with PNP and NPN signals | |
| Analog input | 0~20mA ,4~20mA, 0~5V, 0~10VMaximum voltage<33V Maximum current <30mA(continuous input) | |
| Analog output | 0~20mA (24 V output)4~20mA (24V output)0~5V, 0~10V | |
| Dimensions | 8-in 8-out、12-in 12-out: 145mmX90mmX40mm, 16-in 16-out：160mmX95mmX56mm , 32-in32-out: 300mmX110mmX60mm | |
Applications:
It is widely used in industry automation such as Steel, petroleum, chemicals, electricity, building materials, machinery manufacturing, automobiles, textiles, transportation.
Competitive Advantage:
1.Easy to program and easy to use while greatly reducing the cost.
2.It can also be used as a multiple time relay
3.Can replace ordinary PLC
4.Can replace multiple time relays: the time is accurate to 0.01 seconds.
5.Can replace PLC analog current module, voltage module.
6.Program encryption
7.offline management
